Automatic Paper Tray Stacker
Created with Pixso.

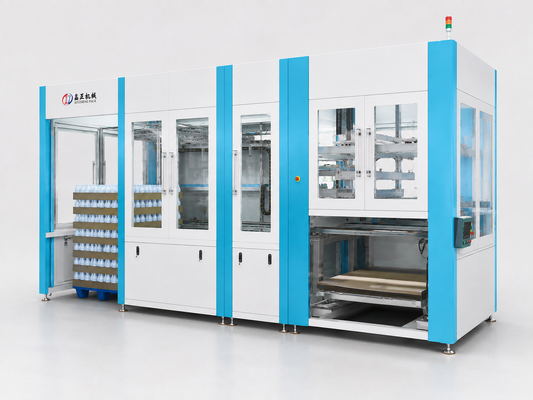

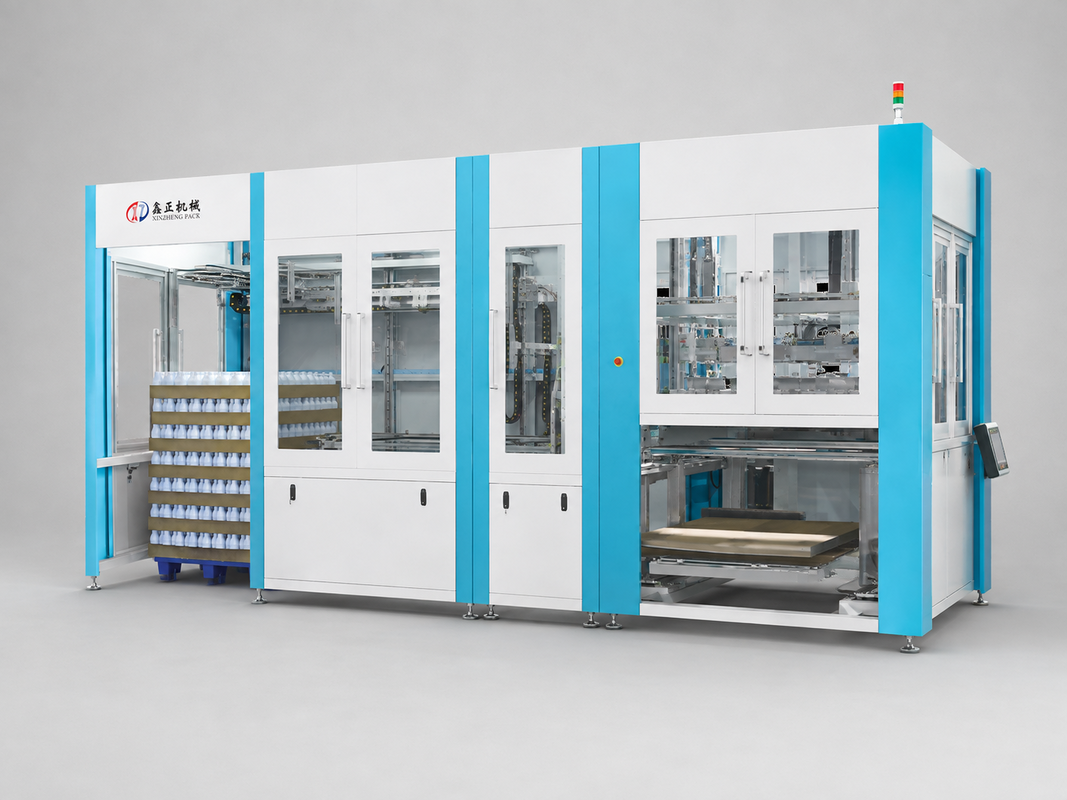

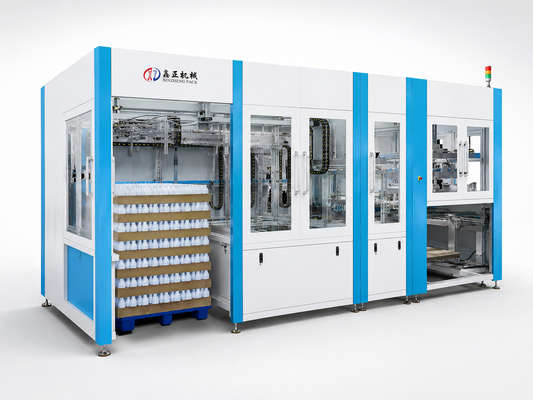

Automatic Paper Tray Stacking Machine High Speed Servo And Vacuum Conveying

Automatic Paper Tray Stacking Machine High Speed Servo And Vacuum Conveying

Brand Name: XINZHENG PACK
Model Number: ZT-QZD-1200
MOQ: 1
Payment Terms: T/T
Supply Ability: 25pcs./month
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, China
Certification:
CE
Document:
Automatic Paper Tray Stacke...er.pdf
Voltage:
220V
Electric Current:
20A
Gas Consumption:
1m³/min
Power Consumption:
10KW/H
Weight:
3000KG
Output:
3000-9000pcs/h
Packaging Details:
Wooden Case
Highlight:

Automatic Paper Tray Stacking Machine

,

Paper Tray Stacking Machine Automatic

,

High Speed Automatic Paper Tray Stacker

Product Description



Automatic Paper Tray Stacking Machine High Speed Servo And Vacuum Conveying

Automatic Paper Tray Stacker – Technical Overview



Designed for continuous, high‑volume packaging of rigid plastic containers (HDPE, PET, PP), this system fully automates the tray placement, bottle collation, stacking, and top‑cover application, eliminating manual intervention and ensuring consistent cycle times.



Core Technology

  • 20‑axis servo bus control for smooth, synchronised motion.
  • Low‑voltage integrated start‑up with automatic top‑plate flipping – reduces paper‑feed interruptions.
  • Multi‑servo / multi‑link mechanism with adjustable tray range and centering system, enabling rapid format changes (tool‑less adjustment for different paper sizes).



Performance

  • Single‑lane speed: ~9,000 pcs/h (for paper size <0.5L); optional dual‑lane vacuum feeding for higher capacity.
  • EtherCAT communication ensures high precision, fast response, and simplified wiring.
  • Supports single‑ or dual‑channel automatic feeding, staggered paper arrangement, and precise positioning.



Smart Maintenance

  • Built‑in IoT modules for real‑time status monitoring, remote debugging, and fast fault diagnosis.
  • Quick‑change paper tray system reduces changeover time significantly.



Supply & Support

  • Monthly production capacity: 25 units (standardised mass production).
  • Spare parts always in stock – same‑day shipping via ERP‑integrated logistics.

Typical applications: pesticide bottles, daily chemical detergent bottles, food bottles, and similar rigid container lines.
